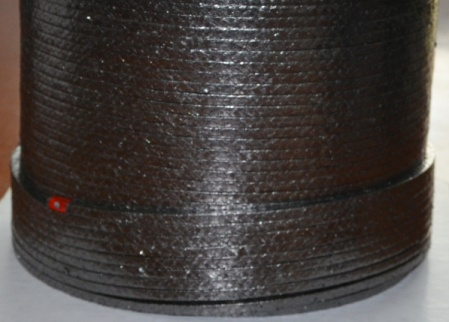

Expanded Graphite Braided Packing

Packing, Style GH1851	Working Conditions
Temperature (ºC)	Atmosphere	-210 - 450
	Steam	up to 650
Velocity (m/s)	20
Pressure (Bar)	Pump	27.5
	Valve	450
PH	0-14

Composition: Expanded graphite braided

Application:

Textile, power, chemical and mining industries. The products are almost suitable to all media, such as water, dilute acids and alkalis, organic compounds, oils and greases, etc.

Equipment:

An universal packing for piston, impeller pumps, flange, etc.

Size:

3×3mm--50×50mm; or according to client's requirement.
