Sheet DP5060

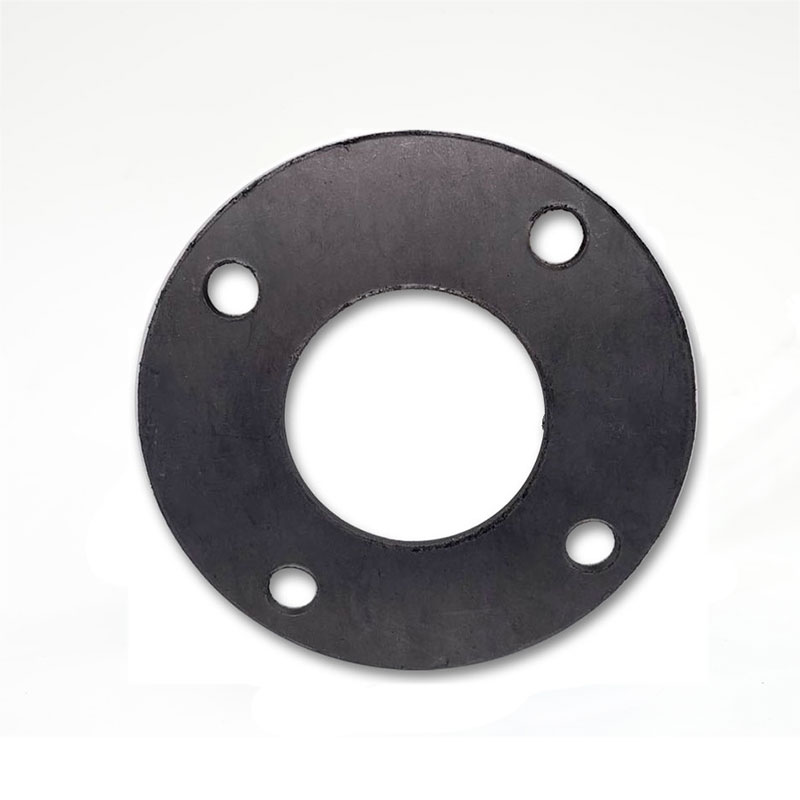

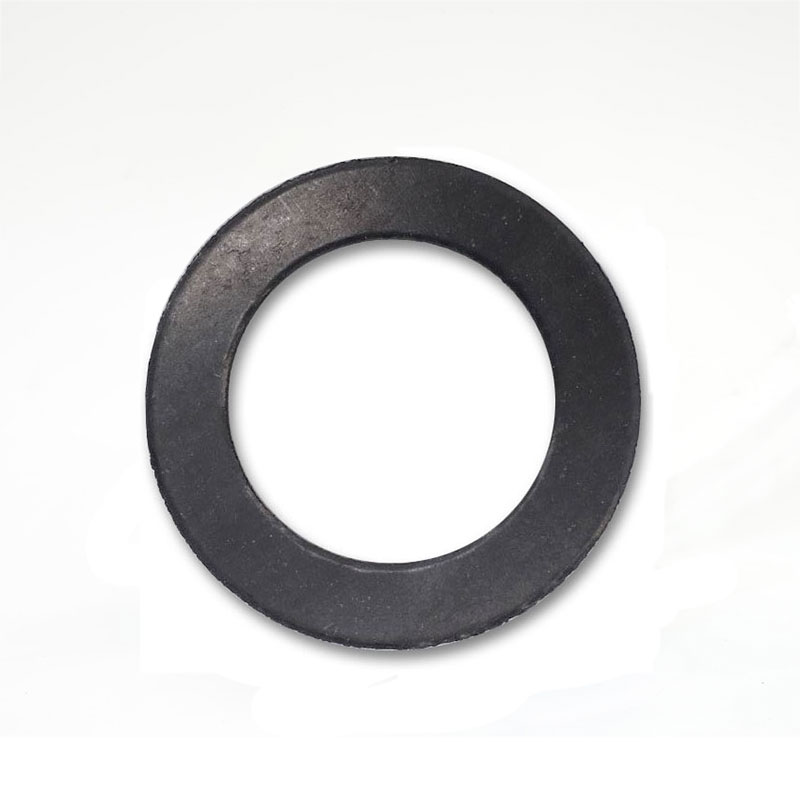

Description: Oil Resistance Asbestos-Free Gasket Sheet.

Main material: Carbon fiber, organic fibers NBR rubber.

Standard size (mm):1270*1270, 1270*3810, 1500*1500, 1500*2000, 1500*4500.

Thickness (mm): 0.5/0.8/1.0/1.5/2.0/3.0/4.0/5.0

Tolerance: Thickness: ±10%, length & width:±50mm

Technical data:

ItemUnitValue
Densityg/cm31.65~1.75
Tensile strength ASTMF-152 Mpa10
Compressibility ASTMF-36 %7~12
Resilience ASTMF-36 %≥40
Creep relaxation rateN/mm²≤28
Leakage rateASTMF-37 cm3/s1.0×10-3
Oil resistance
Thickness growth
ASTM3# oil 150℃/5h≤10≤10
ASTM Fuel oil B 23℃/5h≤15≤15
Temperature (Long-term working)250~350
Top Temperature480
ApplicationExcellent oil-resistance and strong acid resistance. Covered any working condition except food and medicine touched media.
Advise pressure≤11Mpa
