Technical data
Temperature range: -240°C -- + 260°C
Pressure: from vacuum up to 200 bar
Chemical resistance: pH 0 – 14
Features
It is produced by a special monoaxial stretching process from 100% pure PTFE. An adhesive strip - approved for use with foodstuffs - makes installation quick and easy.
-
Advantages
Seal irregular face joint, out-of-parallel, damaged flange faces, For applications where a certain remaining gasket thickness is required.
Quick and easy installation

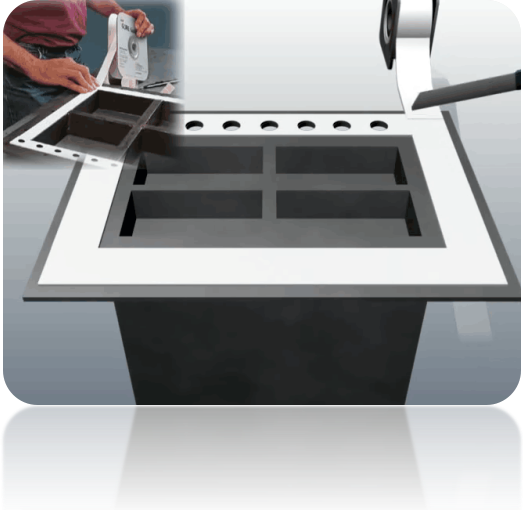

Adhesive strip aides installation - excellent malleability compensates for irregularities.
Used tape can be removed easily and without residue.
Reference Applications

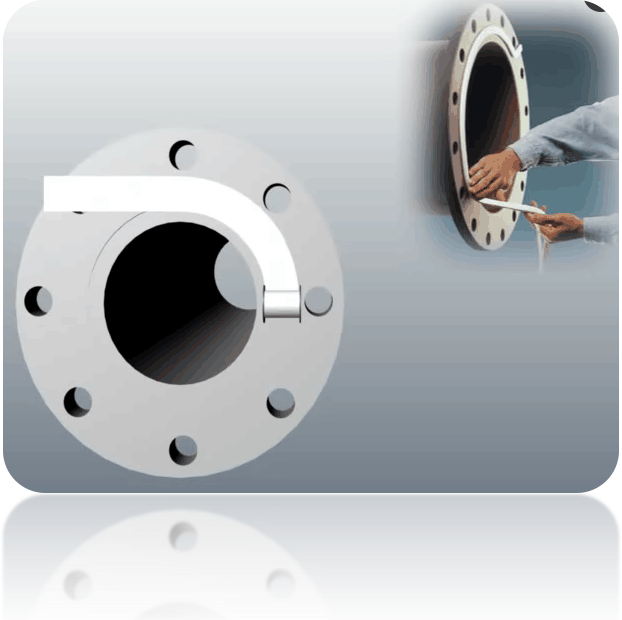

For all kinds of flanged joints.
For housings of pumps, compressors, etc.
As a lid seal for various containers and vessels.
For pressure sensitive and stress sensitive joints where only a low flange load may be applied.
Sealing of tube heat-exchangers.
Extra large flanges, containers, lids etc.
Pump housings.
Inspection holes, manholes, and many more.
-
Size: From 3 - 45mm wide, 1.5 - 7mm thickness φ≥1.5mm. Other Size on request.
