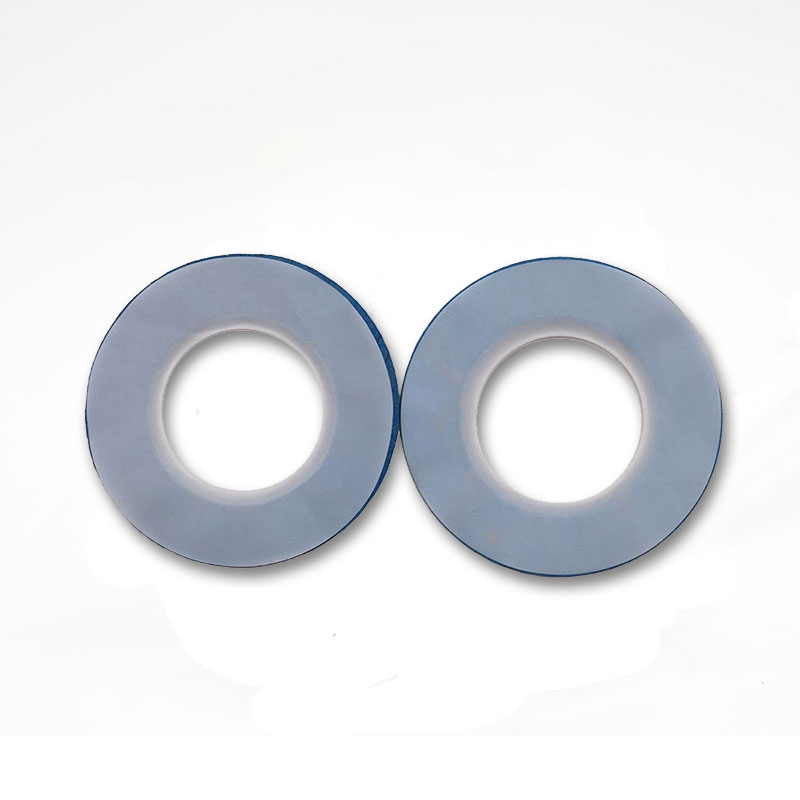

PTFE Envelope Gasket
PTFE Envelope Gasket has three type as PMF, PMS, PFT. Gaskets are manufactured by gasket core with a PTFE lamination. They combine the mechanical strength, resilience and bolt load retention of gasket with the chemical resistance of PTFE. They are used in equipment with glass; ceramic or glass coated steel flanges.
Material
Core Material: Non-asbestos, EPDM, Metal
Lamination: PTFE
Working pressure: PN≤25bar; Working temperature: ≤130℃
Application
Flanges, tanks, reactors, stainless steel and especially between enamel surfaces. This gasket has excellent anti-corrosive property, widely using in chemical, petrochemical and pharmaceutical industries.
Gasket Size:

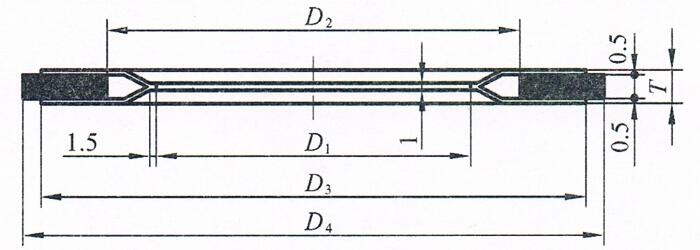

PMF

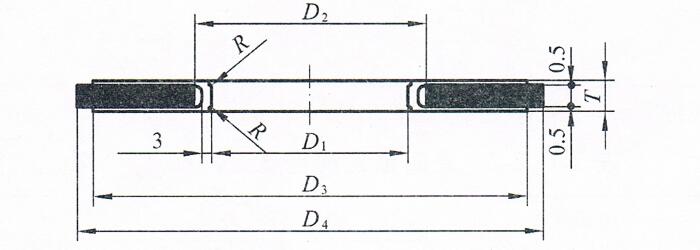

PMS

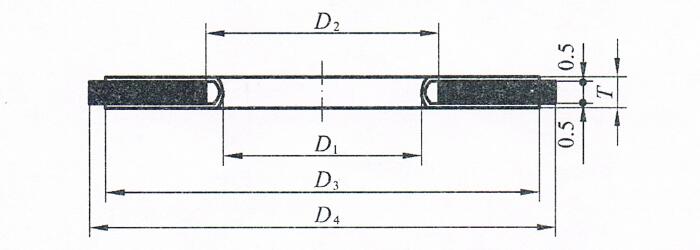

PFT
Gasket Size Tolerance:
