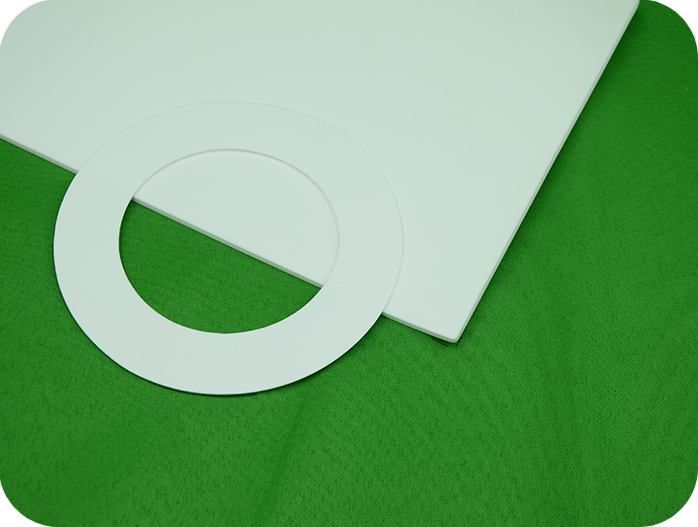

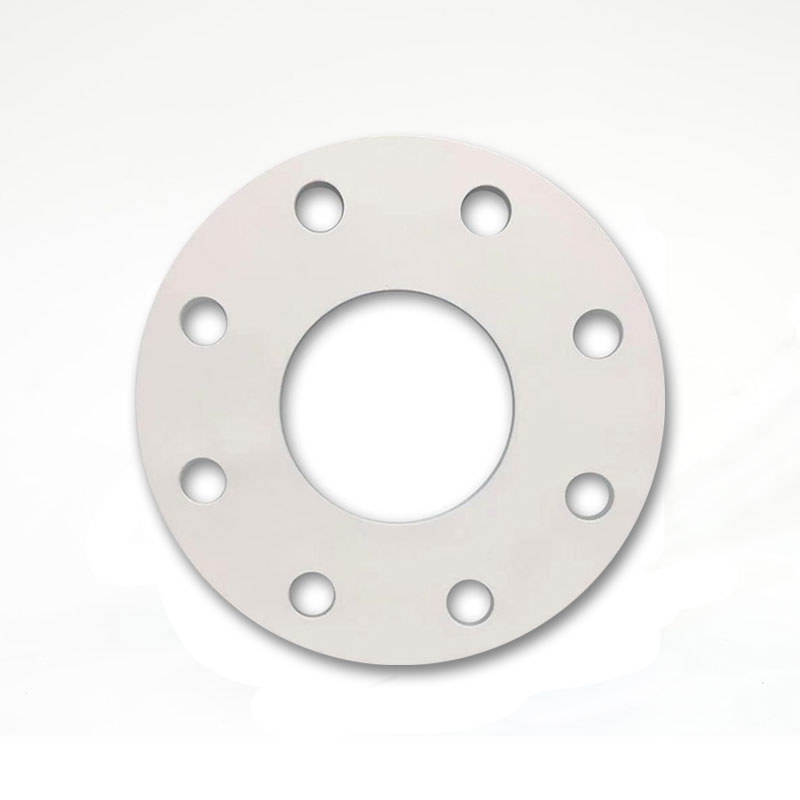

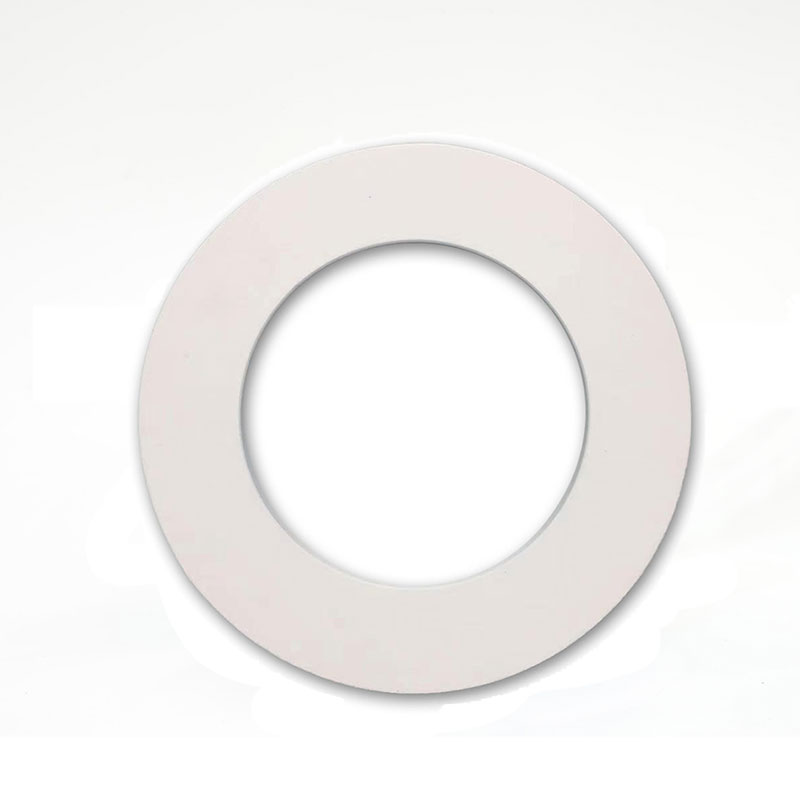

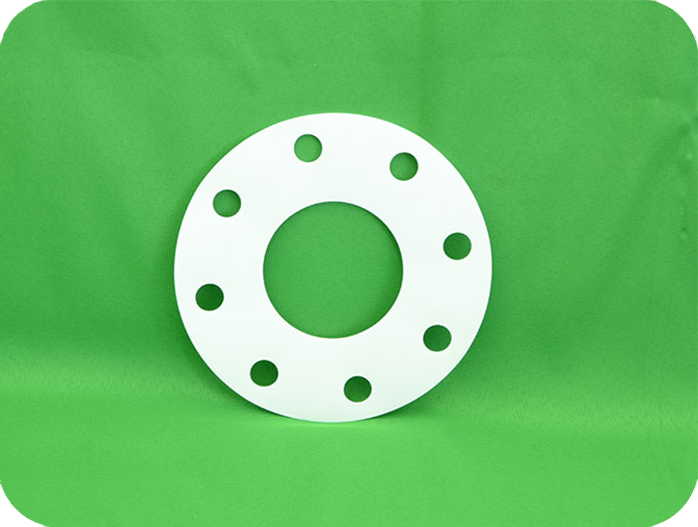

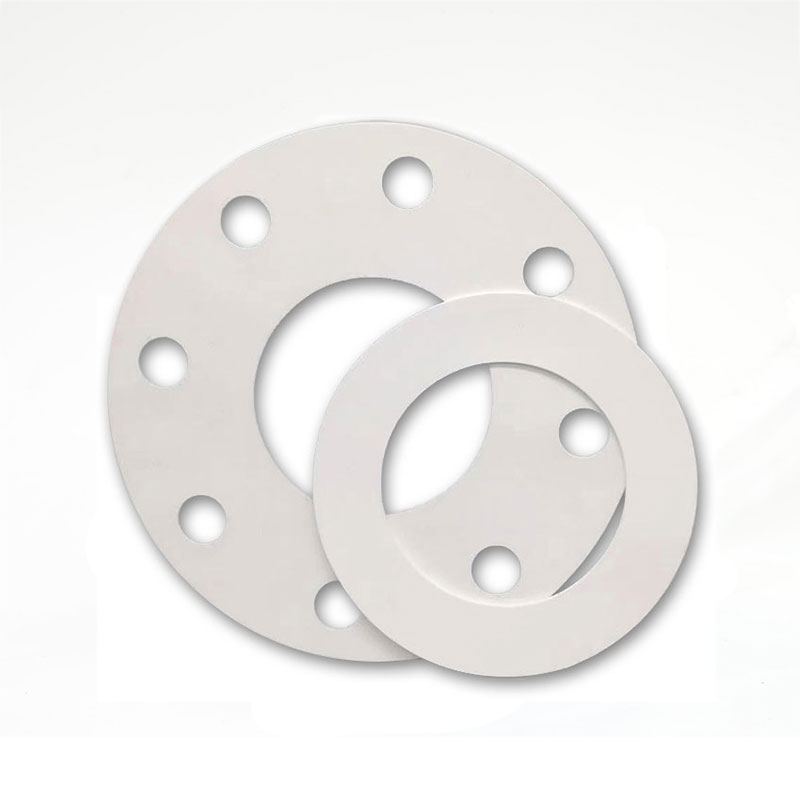

CILON 6018

  • Modified PTFE Sheet

    Color: Off-White

    Filler: Barium Sulfate

    Summary: Specialized in alkaline media.

    For chemical and pharmaceutical industry seal gasket.

    Strong caustics, moderate acids, chlorine, gases, water, steam, hydrocarbons, and cryogenics.

  • Supply standard

    Sheet Size: 1500*1500

    Gasket size: ASME B16.21 / EN 1514-1

    Thickness: 1.0mm 1.5mm 2.0mm 3.0mm

    PH: 0 ~ 14

    Usage temperature: -100℃~+250℃

ItemStandardData
Compressibility 350bar %ASTM F36A-99≥8
Recovery 350bar %ASTM F36A-99≥30
Tensile MpaASTM 152-95≥8
Specific Gravity g/cm3ASTM D 7922.8
Seal leakage rate(cm3/s)GB/T9129-2003 < 1x10-3
ASTM test reference to gasket thickness 2 mm;
DIN test reference to gasket thickness 1.5 mm.
