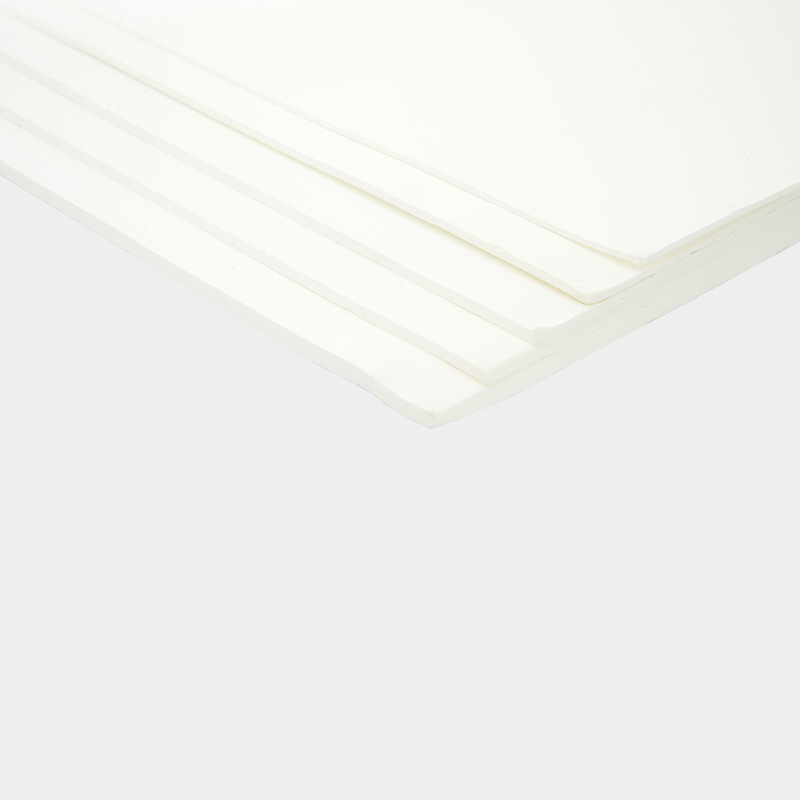

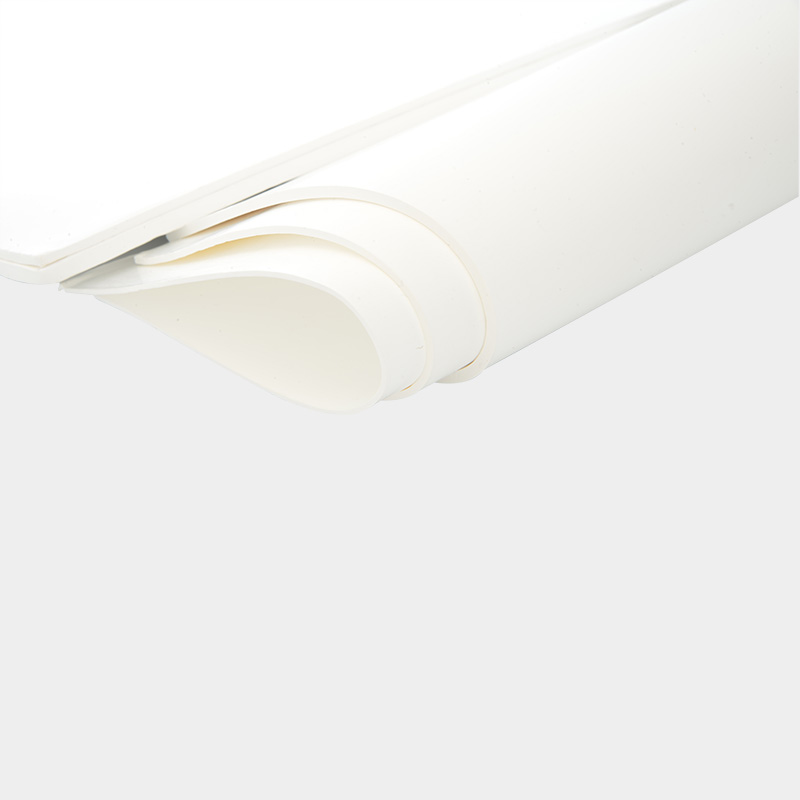

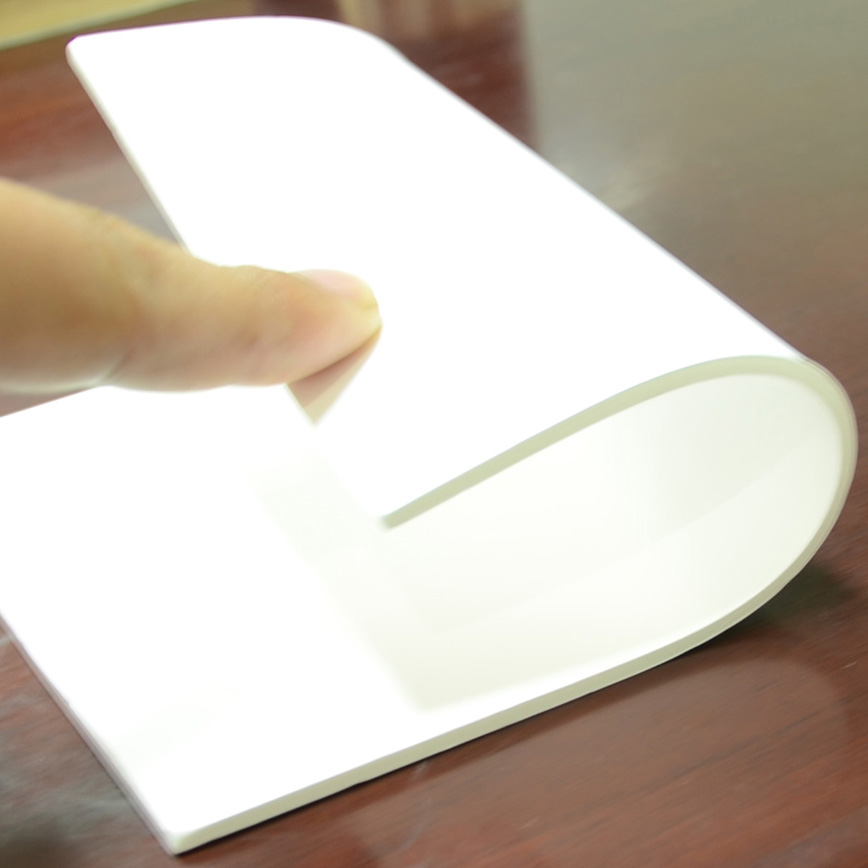

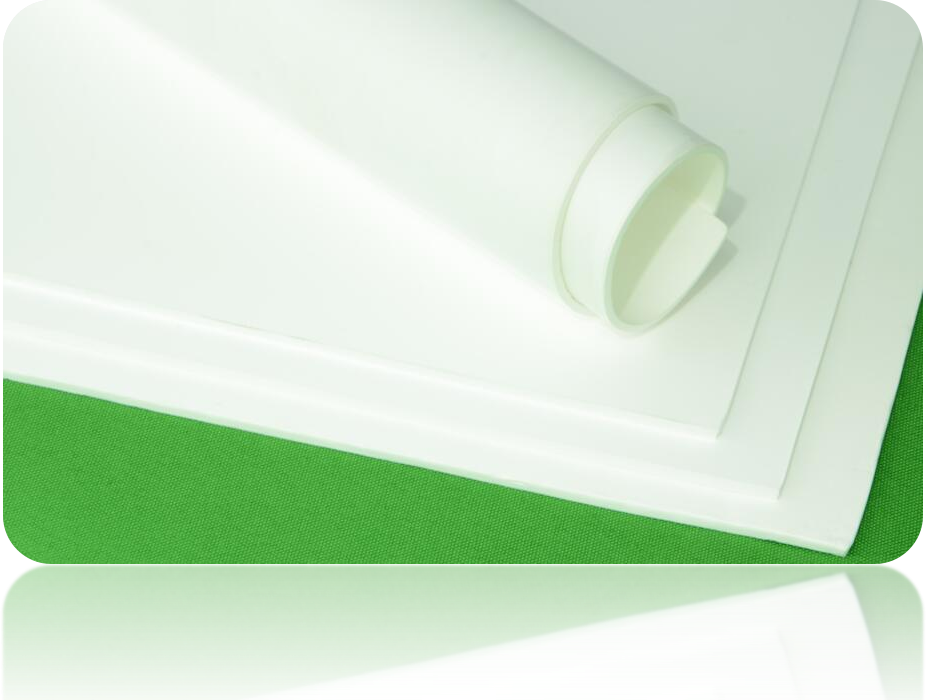

CILON 1200A
Expanded PTFE Sheet
-
Basic Feature
Material: Expanded PTFE
Density (at delivery): ≈ 0.7g/cm³
Temperature range: -240°C -- + 260°C
Short term up to +315°C
Pressure: from vacuum up to 200 bar
Chemical resistance: pH 0 – 14
Features
A special production process ensures equal tensile strength in all directions. Eliminating cold flow and creep.
Advantages
Does not shape changing under compression
Easy to cut or punch
Suitable also for enamel flanges and/or vessels
Compensates for irregularities and/or damages on the flange faces
Has all inherent advantages of pure PTFE
Reference Applications
Liquid equipment joint seal.
Suitable for all pressure sensitive and stress sensitive connections.
Suitable for aggressive chemicals media.
Non-contaminating.
Extremely versatile for flange connections, pressure vessels, chemical reactors and/or housings of pumps, compressors etc.
Standard Size(mm)
Length * Width: 1500*1500
Thickness: 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0, 6.0
Package
1). Packed by carton box by roll;
2). Packed by plywood case.
