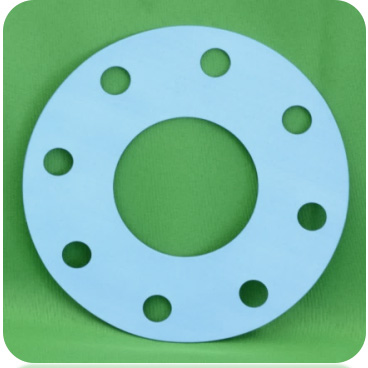

CILON 6020

Modified PTFE Sheet

Color: Light blue

Filler: Silica

Summary: CILON 6020 is used in super lower temperature working condition. Gasket sheet has excellent performance in lower temperature working condition, especially in liquid oxygen, liquid nitrogen joint seal.

Supply standard

Sheet, gasket

Size: 1200 * 1200 * 3; Large diameter gasket can be ordered.

Color: light blue.

PH: 0 ~ 14.

Working pressure: <10 MPa

Use temperature: -200 ℃ ~ + 260 ℃

ItemStandardData
Compressibility 350bar %ASTM F36A-9915~18
Recovery 350bar %ASTM F36A-9925~30
Tensile MpaASTM 152-9515
Elongation at break %ASTM 152-95250~310
Specific Gravity g/cm3ASTM D 7922.16
Creep Relaxation %ASTM F3827
Seal leakage rate(cm3/s)GB/T9129-2003 < 1x10-3
ASTM test reference to gasket thickness 2 mm;
DIN test reference to gasket thickness 1.5 mm.

Note:

1. Large diameter gasket can be ordered. Thickness ≤8mm.

2. Gasket welding point: 1-2.

3. The material of the gasket can be welded, the welding point don’t use film (PFA), the strength of the weld point is over 85% of the gasket body (under 250 ℃).
