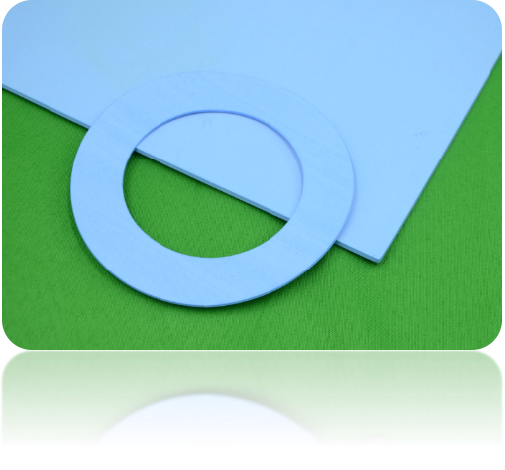

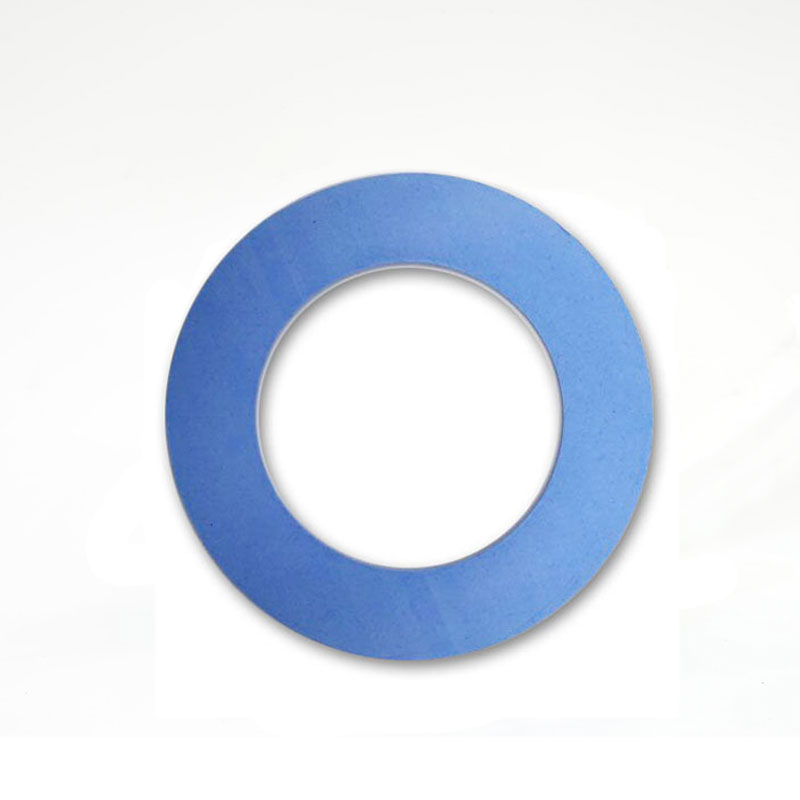

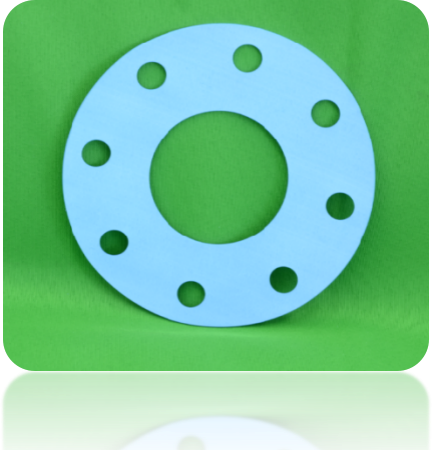

Modified PTFE Sheet
Color: Blue
Filler: Glass Microspheres
Summary: Specialized in acids media.
For chemical and pharmaceutical industry seal gasket.
Moderate concentrations of acids and some caustics, hydrocarbons, solvents, water, refrigerants, and cryogenics.
Supply standard
Sheet Size: 1500*1500
Gasket size: ASME B16.21 / EN 1514-1
Thickness: 1.0mm 1.5mm 2.0mm 3.0mm
PH: 0 ~ 14
Usage temperature: －100℃～+250℃
| Item | Standard | Data |
| Compressibility 350bar % | ASTM F36A-99 | ≥16 |
| Recovery 350bar % | ASTM F36A-99 | ≥32 |
| Tensile Mpa | ASTM 152-95 | ≥10 |
| Specific Gravity g/cm3 | ASTM D 792 | 1.6 |
| Seal leakage rate(cm3/s) | GB/T9129-2003 | < 1x10-3 |
| ASTM test reference to gasket thickness 2 mm; DIN test reference to gasket thickness 1.5 mm. | ||
