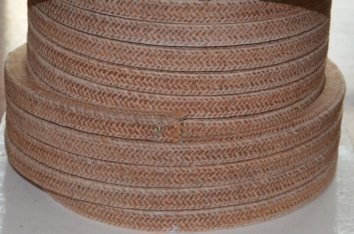

Kynol Fiber Packing

Packing, Style GH2393	Working Conditions
Temperature (ºC)	-200 - 260
Pressure (Bar)	200
Velocity (m/s)	20
PH	1-13

Composition: KynolTM, PTFE lubricant

Application:

Suitable for abrasive media, and where contamination is not permitted. It has multiple uses in chemical plants and pulp and paper mills, and is regularly used in rotating and reciprocating pumps, washer journals, liquor pumps, refiners and digesters. Applications where graphite impregnation may not be acceptable.

Equipment:

Pulp factory, sand slurry tin mine and feed water pump of power plant etc.

It has very good mechanical properties combining softness and strength. The packing has natural golden sheen.

Advantage:

Thermal stability, low heat expansion; High dimensional stability and superior pressure resistance even at elevated temperature; Good process-ability, easy to cut and fit; Outstanding chemical resistance particularly in acidic media; Excellent resistance to organic solvents, oil and fuels.

Size:

3×3mm--50×50mm; Others can be produced according to client's requirement.
